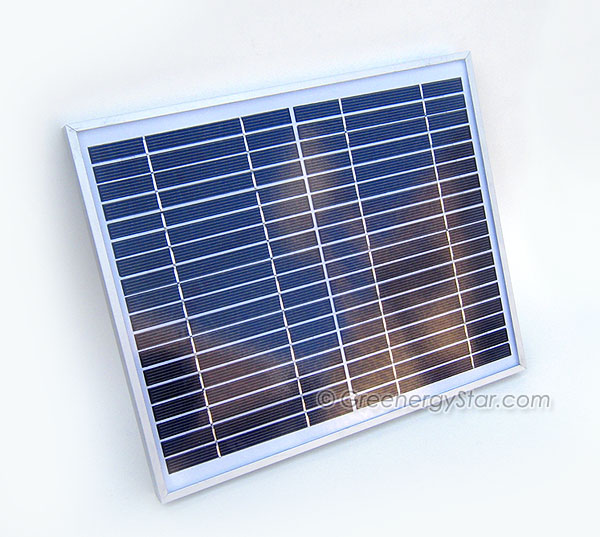

> >12W Polycrystalline Solar Power Panel
12W Polycrystalline Solar Power Panel View larger

12W Polycrystalline Solar Power Panel

12w-33.7x28.3x2.5cm

New product

$55.00

Add to wishlist

More info


Solar Panel Specification:

Output 12W
Type Polycrystalline
Open Circuit Voltage (Voc) 21.3V
Maximum Power Voltage (Vmp) 17.5V
Short Circuit Current (Isc) 0.77A
Maximum Power Currrent (Imp) 0.68A
Output Tolerance +/-5% (11.4W - 12.6W)
Operating Temperature -40°C to 80°C
Frame Aluminum Alloy
Efficiency 12.8%
Connection Junction box
Cable Not Included
Number of Cells 36 cells
Glass Tempered Glass
Battery Voltage 12V
Dimension 33.7 x 28.3 x 2.5cm
13.3 x 11.1 x 1 inches
Weight 1.365kg, 3lbs







Solar panel generates free energy for many general household appliance. These solar panels also specially designed for use in sailing boats, green houses, cars, radios, recreational vehicles, portable televisions, warning lights, flash lights, garden lights, house light, garage lights and ventilators for rooms and cars. They can also be installed into a grid-tie system.

- 36 pieces silicon solar cells
- Enclosed with epoxy and high-quality resin material
- Rain proof, rust proof and corrosive proof, protects against wind, rain, salt air and solar radiation.
- Weather resistant, charge batteries in dry/wet condition

Comparison Chart:

Polycrystalline Silicon Panels
Amorphous Silicon
Polycrystalline Silicon Panels
Amorphous Silicon
Pros
Cons
Pros
Cons
Efficiency can be compensated by better utilization of the area available for modules. 12-14% efficiency
(Medium)		 Most economical 6 - 8% efficiency
(Low)
Most Cost effective Thin Film Panel size is huge because of low efficiency
Small Panel Size Heavy weighted (Hard to install)
Light Weighted (Easy to install)
Rectangular shaped cells




NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE
